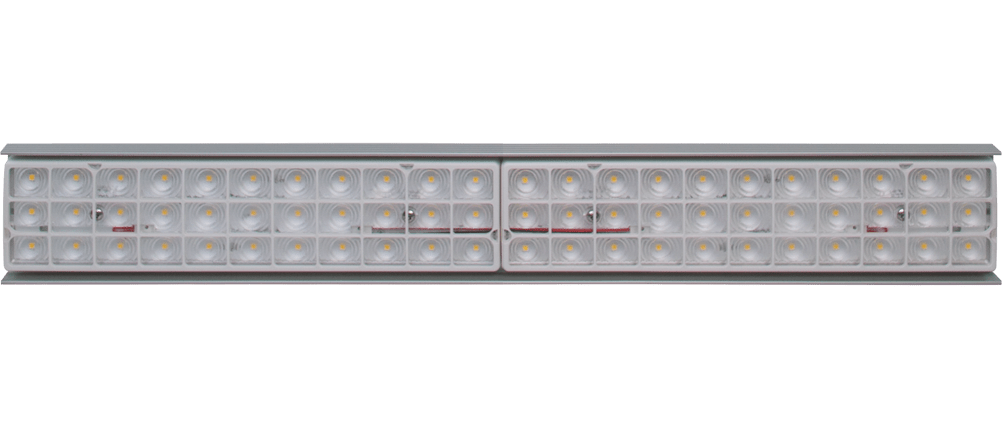

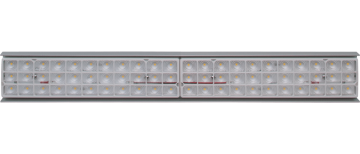

CELL

High efficiency without glare

Efficiency icon: A yellow pictogram of an illuminated light bulb inside a circle.

high efficacy

Luminous flux efficiency of up to 164 lm/W

Low glare icon: A yellow pictogram of a shield with a checkmark in the center, all enclosed within a circle.

low glare

Maximum comfort for your eyes

Lifespan icon: A yellow pictogram inside a circle featuring a clock with an arrow orbiting around it.

life span 80.000 HOurs with L80B10

Think about the long-term costs

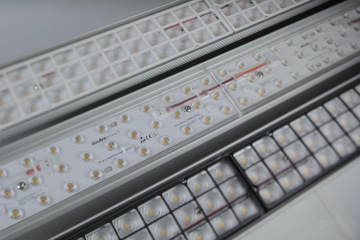

View of the LED modules for three types of doublepower CELL industrial lighting The range offers various configurations. Shown here are the versions with a clear cover, a prismatic cover, and a special louver (grid) designed to further reduce the glare factor.

  • Thanks to a combination of the luminaires’ special design, the optical system, and the layout of the light-emitting surfaces, the CELL luminaire achieves high efficiency with a very low glare level

  • The luminaires are available with a transparent or prismatic cover and a special grille to further reduce the glare factor
View of the universal mounting system for the CELL industrial light Secured by an M6 nut and suspension eyelets, this design allows for both individual installation and continuous row mounting.

  • Versatile suspension and attachment options. The luminaire adapts to any situation and installation limitations. It can be hung separately or as a continuous lighting line. We also offer a busbar system

The company foxconn appreciates the low glare level and high efficiency of the CELL luminaire

The Foxconn Company is a leading global electronics producer and after-sale services provider. Its European headquarters in the Czech Republic was established at the turn of the millennium. Since then, Foxconn has become one of the three most important Czech exporters. It is an honor that the Foxconn headquarters are using our CELL luminaires.
Detail of the connector on the doublepower CELL industrial luminaire The unit can also be equipped with a cable gland or a grommet, depending on requirements.
  • We supply the luminaire with a connector or a cable gland

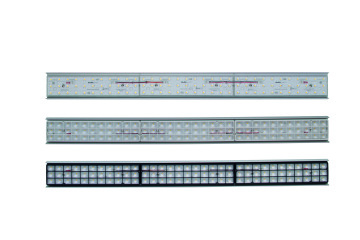

Three types of doublepower CELL industrial luminaires stacked Showcasing different cover options: clear, prismatic, and the glare-reducing louver.

  • Luminous flux efficacy of up to 164 lm/W for Ta +45°C

  • Unbeatably low glare values.
  • Modularity—various power options—modules arranged in a series (1-8 modules in a row)
  • Variability—a whole range of lighting characteristics which can be combined
  • L80B10 > 80,000 hours for Ta +45°C
  • IP20

CELL: technical parameters

An energy-efficient industrial LED luminaire for both main and local lighting with a unique heat-management design.

PDF file icon

Data sheet CZ

PDF file icon

Data sheet EN

PDF file icon

Data sheet DE

PDF file icon

Data sheet FR

Specification

Versions 2 modules 3 modules 4 modules 5 modules 6 modules 7 modules 8 modules
HE version output 22,6 W 33,9 W 45,2 W 56,5 W 67,8 W 79,1 W 90,4 W
HO version output 26 W 39 W 52 W 65 W 78 W 91 W 104 W
Luminous flux of the luminaire with 4000K HE 3 726 lm 5 588 lm 7 451 lm 9 314 lm 11 177 lm 13 039 lm 14 902 lm
Luminous flux of the luminaire with 4000K HO 4 221 lm 6 331 lm 8 441 lm 10 551 lm 12 662 lm 14 772 lm 16 882 lm

Chip efficacy / HE luminaire efficacy

181 lm/W / 165 lm/W

Chip efficacy / HO luminaire efficacy

178 lm/W / 162 lm/W

Light source

chip Samsung 2700K- 6500K

Life span

L80B10 = 80 000 hours, L80B50 = 105 000 hours with Ta +45°C

Front cover

PMMA optics

Body

Anodized aluminium profile
Highly efficient heat dissipation for optimal temperature control
Low operating temperatures of the luminaire and all components

Protection rating

IP20

Operating temperatures

-25°C ~ +50°C

Optical system and reflectors

Linear optics 60° / 90° / 85°+ 40°, asymmetric and special characteristics

Other

Extremely low glare factor = high comfort for the eyes
DALI / DSI control available, possibility to integrate with doublepower!! DALI/KNX complex control system

Manufacturer

doublepower!! s.r.o. Czech Republic

luminaire dimmensions

Florence2 (flat), optics 60°, 90°

model length height width
2x module 57 7,3 7,8
3x module 85,5 7,3 7,8
4x module 114 7,3 7,8
5x module 142,5 7,3 7,8
6x module 171 7,3 7,8
7x module 199,5 7,3 7,8
8x module 228 7,3 7,8

With screen, 30°, 60°, 90°, O optics, asymmetric

model length height width
2x module 58,2 7,3 7,8
3x module 87,3 7,3 7,8
4x module 116,4 7,3 7,8
5x module 145,5 7,3 7,8
6x module 174,6 7,3 7,8
7x module 203,7 7,3 7,8
8x module 232,8 7,3 7,8
