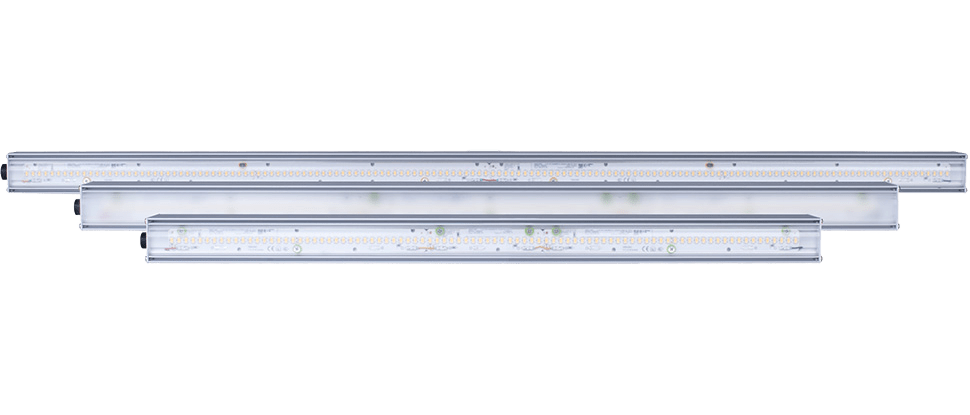

AIR
An extremely efficient LED line luminaire for undemanding operations in light industry, logistics and retail
VERY HIGH EFFICACY
Luminous flux efficacy of up to 184 lm/W
HIGH VARIABILITY AND MODULARITY
Various output options, optics and color temperatures
LIFESPAN OF 80,000 HOURS WITH L80B10
Think about the long-term costs
-
The luminaires use reliable Samsung 301B LED bands with an adjustable color temperature of 2700-6500 K
- The optical system enables the user to choose from a whole range of lighting characteristics
-
If requested by the client, the standard connector can be replaced by another tailor-made solution
In cooperation with our German partner we supplied luminaires from the doublepower!! AIR product line to the NATO Allied Joint Force Command in Brunssum, Netherlands. NATO experts choose doublepower!! AIR due to its high quality, efficiency and long-term reliability.
- The superior aluminum profile with lateral cooling ribs ensures quick heat dissipation. The front cover is available in a transparent or diffused version
- The operating temperature range is -25 °C ~ +50 °C
-
The luminaires from the AIR product line are available in various outputs from 18.48 W to 79.48 W (3,319 lm to 14,022 lm)
AIR: technicAL parametErS
An energy-efficient industrial LED luminaire for both main and local lighting with a unique heat-management design.
Specifications
| Version | 2 modules | 3 modules | 4 modules | 5 modules | 6 modules |
|---|---|---|---|---|---|
| Output (HIGH EFFICIENCY TYPE) | 19,10 W | 28,65 W | 38,20 W | 47,80 W | 57,30 W |
| Output (HIGH OUTPUT TYPE) | 28,40 W | 42,60 W | 56,80 W | 71,00 W | 85,20 W |
| Luminous Flux od the Luminaire (HIGH EFFICIENCY TYPE) with 4 000K | 3 144 lm | 4 717 lm | 6 288 lm | 7 861 lm | 9 433 lm |
| Luminous Flux of the Luminaire (HIGH OUTPUT TYPE) with 4 000K | 4 431 lm | 6 647 lm | 8 862 lm | 11 077 lm | 13 292 lm |
|
Efficacy of the LED chip / luminaire (HIGH EFFICIENCY TYPE) |
171 lm/W / 165 lm/W (174 lm/W / 168 lm/W with 5 000K) |
||||
|
Efficacy of the LED chip / luminaire (HIGH OUTPUT TYPE) |
162 lm/W / 156 lm/W (163 lm/W / 157 lm/W with 5 000K) |
||||
|
LED Light source |
SAMSUNG LM301B LED band, 2700 - 6500K |
||||
|
Life-span of the luminaire |
L80B10 = 80 000 hours in Ta -25°C ~ +50°C |
||||
|
Front cover |
PMMA optics / diffused |
||||
|
Body |
Anodized Alluminium |
||||
|
Protection rating |
IP43 |
||||
|
Operating temperatures |
-25°C ~ +50°C |
||||
|
Optical system |
Linear lens 40°/ 60° / 90°/ 110° / asymmetrical versions / diffused optics |
||||
|
Other |
No stroboscopic effect |
||||
|
Manufacturer |
doublepower!! s.r.o. Czech Republic |
||||
Dimmensions / cm (suspended luminaire)
| Code | Name | Weight (kg) | Length (cm) | Width (cm) | Height (cm) |
|---|---|---|---|---|---|
| DP-AR-209-HE-SS-xxx-xx-N | doublepower!! AIR HE 19W | 1,55 | 60 | 5 | 6,5 |
| DP-AR-309-HE-SS-xxx-xx-N | doublepower!! AIR HE 29W | 2,3 | 88 | 5 | 6,5 |
| DP-AR-409-HE-SS-xxx-xx-N | doublepower!! AIR HE 38W | 3,05 | 116 | 5 | 6,5 |
| DP-AR-509-HE-SS-xxx-xx-N | doublepower!! AIR HE 48W | 3,8 | 144 | 5 | 6,5 |
| DP-AR-609-HE-SS-xxx-xx-N | doublepower!! AIR HE 57W | 4,65 | 172 | 5 | 6,5 |
| DP-AR-209-HE-DS-xxx-xx-N | doublepower!! AIR HE 19W, DALI | 1,55 | 60 | 5 | 6,5 |
| DP-AR-309-HE-DS-xxx-xx-N | doublepower!! AIR HE 29W, DALI | 2,3 | 88 | 5 | 6,5 |
| DP-AR-409-HE-DS-xxx-xx-N | doublepower!! AIR HE 38W, DALI | 3,05 | 116 | 5 | 6,5 |
| DP-AR-509-HE-DS-xxx-xx-N | doublepower!! AIR HE 48W, DALI | 3,8 | 144 | 5 | 6,5 |
| DP-AR-609-HE-DS-xxx-xx-N | doublepower!! AIR HE 57W, DALI | 4,65 | 172 | 5 | 6,5 |
| DP-AR-214-HO-SS-xxx-xx-N | doublepower!! AIR HO 28W | 1,55 | 60 | 5 | 6,5 |
| DP-AR-314-HO-SS-xxx-xx-N | doublepower!! AIR HO 43W | 2,3 | 88 | 5 | 6,5 |
| DP-AR-414-HO-SS-xxx-xx-N | doublepower!! AIR HO 57W | 3,05 | 116 | 5 | 6,5 |
| DP-AR-514-HO-SS-xxx-xx-N | doublepower!! AIR HO 71W | 3,8 | 144 | 5 | 6,5 |
| DP-AR-614-HO-SS-xxx-xx-N | doublepower!! AIR HO 85W | 4,65 | 172 | 5 | 6,5 |
| DP-AR-214-HO-DS-xxx-xx-N | doublepower!! AIR HO 28W, DALI | 1,55 | 60 | 5 | 6,5 |
| DP-AR-314-HO-DS-xxx-xx-N | doublepower!! AIR HO 43W, DALI | 2,3 | 88 | 5 | 6,5 |
| DP-AR-414-HO-DS-xxx-xx-N | doublepower!! AIR HO 57W, DALI | 3,05 | 116 | 5 | 6,5 |
| DP-AR-514-HO-DS-xxx-xx-N | doublepower!! AIR HO 71W, DALI | 3,8 | 144 | 5 | 6,5 |
| DP-AR-614-HO-DS-xxx-xx-N | doublepower!! AIR HO 85W, DALI | 4,65 | 172 | 5 | 6,5 |
