EMA

An universal emergency LED light for industry, logistics and retail

version FOR CENTRAL BACKUP SYSTEMS

Designed for central backup systems with a true lifespan of at least 60,000 hours

version with battery

Including integrated emergency battery with a life-span of up to 4 years

Durability icon in the form of a yellow pictogram of a shield with a checkmark in the middle, all inside a circle.

for demanding conditions

Operating temperature range 5-55°C

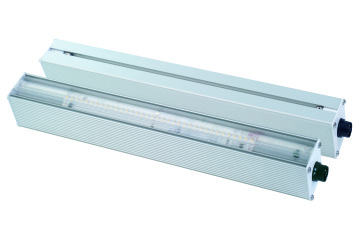

Two industrial emergency lights doublepower EMA side-by-side. Aluminum body and a black connector. One luminaire from a top view, the other from a bottom view. It can be flexibly suspended thanks to M6 nuts that can be slid along the entire length of the luminaire.

Durable industrial luminaire complying with all EU norms for emergency lighting
Flexible suspension using M6 nuts along the entire profile of the luminaire

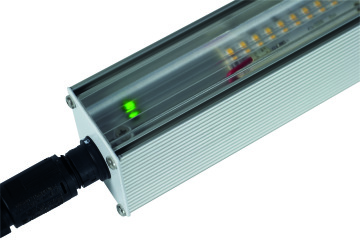

View of the indicator of the industrial emergency lighting doublepower EMA. The indicator, in the form of a green light, shows the readiness, charging, and correct connection of the luminaire. It is easily visible even from a great distance.

A special charging/ready LED indicator is clearly visible even from a large distance, signaling the luminaire is correctly connected in a standby mode

The best ones in their field choose the EMA light for emergency lighting

The EMA luminaires ensure reliable emergency lighting in dozens of companies. They have also been used on a long-term basis in many production facilities of the Coca-Cola HBC Czech Republic and Slovakia in Prague

Detail of the battery of the industrial emergency light doublepower EMA. The ribbed aluminum body houses an easily replaceable battery with a real lifespan of 4 years.

Simple battery replacement after its lifespan expires
True lifespan: 4 years

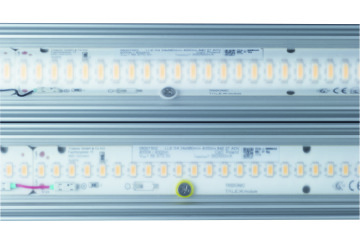

Detail of the LED module of the industrial emergency luminaire doublepower EMA.

Protection rating IP43
Light source: Tridonic LLE G4
Optical system and reflectors: linear optics 40°/60°/90°/110°, diffusion optics

demonstration video

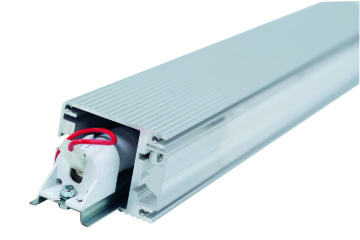

The EMA luminaire is equipped with an RST MINI 5-pole connector, which offers, in addition to its compact size, its own locking mechanism for increased safety.

EMA: technical parameters

Specifications

Input – BATTERY type (integrated emergency battery)	4,00 W
Input – CBS type (backup from central battery source)	9,50 W
Luminous flux of the luminaire – BATTERY type (integrated emergency battery)	540 lm
Luminous flux of the luminaire – CBS type (backup from central battery source)	1 632 lm
Emergency battery – BATTERY type (integrated emergency battery)	Type: Ni - MH Actual service life: 4 years Operating temperature range: +5°C ~ +55°C
Light source	Tridonic LLE G4
Life-span of the luminaire	60 000 hours
Front cover	PMMA optics / diffusion design
Body	Pulled anodized aluminium profile Highly efficient heat dissipation for optimal heat management of the lamp Low operating temperatures of the lamp and all components
Protection rating	IP43
Operating temperatures	+5°C ~ +55°C
Optical system	Linear optics 40° / 60° / 90° / 110° diffusion optics
Other	No stroboscopic effect for rotating machines Seamless DALI / DSI control, connection to complex doublepower DALI/KNX control system
Manufacturer	doublepower!! s.r.o. Czech Republic

LAMP DIMENSIONS

	Version with integrated battery	Version for central battery system
lamp length	43 cm	30 cm
– no connector	43,5 cm	30,5 cm
– with unplugged connector	45 cm	32 cm
– with plugged connector	54 cm	41 cm
– with sleeve	48,5 cm	35,5 cm
lamp width	5 cm	5 cm
lamp height	6,5 cm	6,5 cm
– including hanging loops	11 cm	11 cm
– including hanging loops and carbines	15,5 cm	15,5 cm
lamp weight including sources, without connected connector and loops	1,6 kg	1 kg
