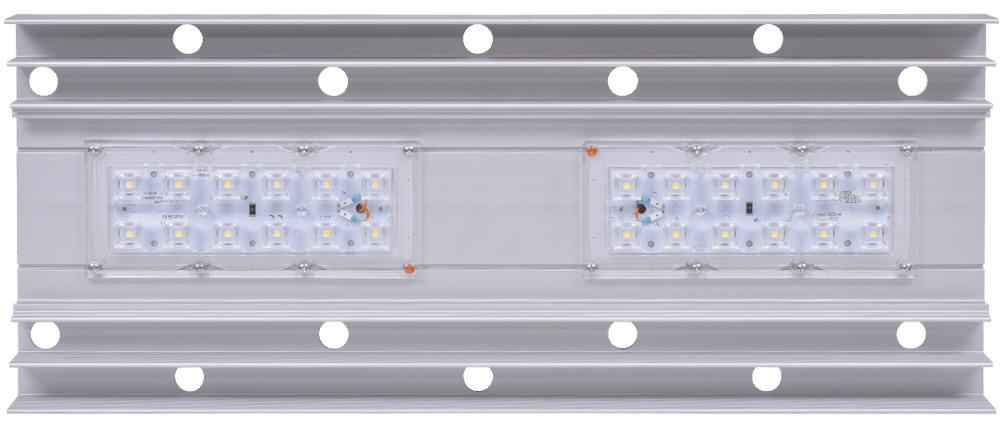

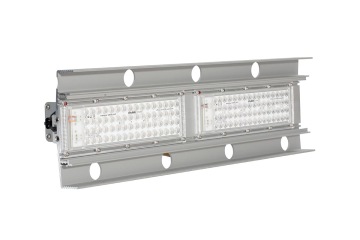

SKY

More than high bay

High variability and modularity

Many power options, various module arrangements, combinations of optics and diverse lighting characteristics within a single luminaire

Also available in the TaMAX version

Flawless operation even at high temperatures of up to +65°C, or up to +80°C with a separated driver

For various mounting heights

Mounting heights of 4-30 meters

  • A rigorous design

  • Protection rating IP65, or even IP66 if requested by the client

  • True lifespan of 100.000 hours (L80B10)

  • 8-year guarantee

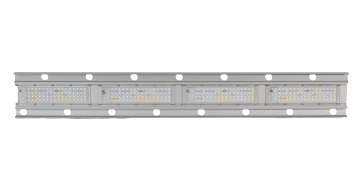

  • We arrange higher-power versions into compact units

  • The optics and lighting characteristics can be combined arbitrarily even within one luminaire

hyundai managers appreciate The parameters of the sky luminaire and the work done by the doublepower!! installation team

"I would like to thank the doublepower!! company for their fantastic cooperation. I believe they are the only ones in Europe capable of replacing the incredible 2416 luminaires within 14 days inside working industrial facilities full of technology. They won my esteem and respect for their incredible performance and high product quality."
Jiří Vaculík, Facilities & EHS, Specialist, Hyundai Motor Manufacturing

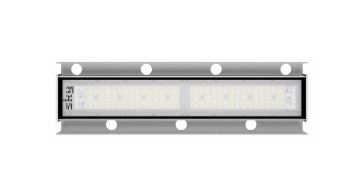

  • We offer versions with or without a glass cover

  • The sophisticated design of the luminaire and top-notch components enable flawless operation even at high temperatures of up to +65°C, or up to +80°C with a separated driver

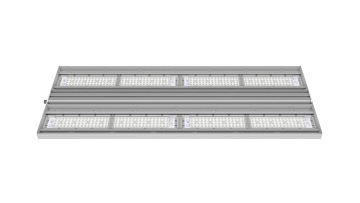

  • A modular design—modules in series or in parallel units

SKY: technical parameters

Specifications

Outputs 74,60 W / 111,90 W / 149,20 W / 186,50 W / 223,80 W / 298,40 W / 373,00 W
Luminous flux of the luminaire 10 727 lm (74,60W) / 16 091 lm (111,90W) / 21 455 lm (149,20W) / 26 818 lm (186,50W) /
32 182 lm (223,80W) / 42 909 lm (298,40W) / 53 636 lm (373W)
Luminous flux efficacy LED light source: 151 lm/W, luminaire: 143,8 lm/W
LED light source CREE XP-L2
Color temperature 4000K – 6500K
Lifespan L80B10 > 100 000 hours at Ta +50°C (+65°C for TaMAX version)
Front cover PMMA with possibility of 3mm borosilicate glass cover
High level of permeability, without degradation in course of time
Body Robust body from anodized aluminium, separate box for the driver

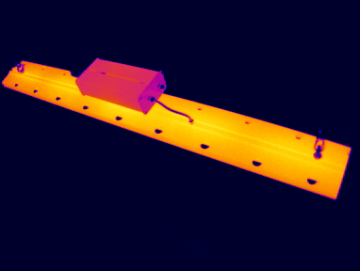

Highly efficient thermal management
Low operating temperatures of the luminaire and all components = long life span
Protection rating IP65
Operating temperatures and electronics –30°C ~ +50°C (–40°C ~ +65°C for the TaMAX version)
Tridonic LED driver with a lifetime of more than 100 000 hours
Optical system

System of PMMA optics with various lighting characteristics
Low glare factor

Other

No stroboscopic effect
DALI / DSI smooth control, possibility to include into a complex doublepower!! DALI/KNX control system
Fast and easy mounting thanks to IP68 connector and adjustable hanging points

Manufacturer doublepower!! s.r.o. Czech Republic

dimensions / cm (suspended luminaire)

SKY
74,6W
SKY
74,6W
TAMAX
SKY
111,9W
SKY
111,9W
TAMAX
SKY
149,2W
SKY
149,2W
TAMAX
SKY
186,5W
SKY
186,5W
TAMAX
SKY
223,8W
SKY
223,8W
TAMAX
SKY
298,4W
SKY
298,4W
TAMAX
SKY
373W
SKY
373W
TAMAX
Lenght without a connector 50 74,8 75 112,2 100 149,6 125 187 150 112,2 100 149,6 150 187
– with unplugged connector 50 74,8 75 112,2 100 149,6 125 187 150 115,2 103,5 152,6 153 190
– with plugged connector 50 74,8 75 112,2 100 149,6 125 187 150 125,5 110,5 162,9 163 200
– with cable gland 50 74,8 75 112,2 100 149,6 125 187 150 119,2 107 156,6 157 194
Width  20,1 20,1 20,1 20,1 20,1 20,1 20,1 20,1 20,1 48,5 48,5 48,5 55,5 55,5
Height 16,5 16,5 16,5 16,5 16,5 16,5 16,5 16,5 16,5 6,5 6,5 6,5 6,5 6,5
– including hanging rings 20,5 20,5 20,5 20,5 20,5 20,5 20,5 20,5 20,5 10,5 10,5 10,5 10,5 10,5
– including hanging rings and snap-hook 24,8 24,8 24,8 24,8 24,8 24,8 24,8 24,8 24,8 15 15 15 15 15
Weight in kg (with unplugged connector, without hanging rings) 3,6 4,6 5,6 6,7 6,8 8,5 8,9 11,2 9,2 14,7 13,2 16,8 20,9 24,5
